2022-2025 Toyota RAV4 Dash Cam Installation Guide: OEM-Style 4K Front & 1080p Rear
So, you've decided to protect your RAV4 with the Wefoka OEM-style 4K dash cam. Excellent choice. You're about to get the security of a professional dash cam without the clutter of suction cups and dangling wires. But before you start, you might be wondering: how hard is this to install?
The good news is that the front camera installs in about 15-20 minutes. The rear camera, however, is the part that makes seasoned DIYers pause. As one owner put it: "Rear camera wiring: Running the cable through the hatch was a pain. The instructions barely cover that step, so I had to look up videos." [citation:owner review].
This guide is designed to be that video in text form. We'll walk you through every single step, from popping off the factory cover to hiding that final inch of rear cable. We've included all the secret tips from RAV4 owners who have already been through the process, so you can get a clean, professional installation the first time.
📦 What You'll Need
Before you head out to the garage, make sure you have everything ready. Your Wefoka box should include everything on this list, but it's good to double-check.
- Front camera unit: The main housing with the 4K camera.
- Rear camera: The 1080p unit with an attached cable.
- GPS module: The small puck for satellite locking.
- Main power harness: The plug-and-play wiring that connects to your mirror.
- Rear camera extension cable: The long cable (approx. 20ft) that runs to the back.
- 128GB microSD card: Hopefully, it's already in the camera slot.
- Trim removal tools: The plastic pry tools to help you remove panels.
- User manual and QR code: For the online video guide.
You might also want: A flashlight, a microfiber cloth (to clean the windshield area), and some electrical tape or zip ties for extra cable management.
🛠️ Step 1: Prepare Your RAV4
Park your RAV4 in a safe, well-lit area. Open the driver's door for easy access to the side of the dashboard. It's a good idea to have your phone or tablet handy to watch the online installation video as you work.
🔧 Step 2: Removing the Factory Mirror Cover (The Orange Clip Secret)
This is the first potential pitfall, but it's easy once you know the trick. Do not try to pry the cover off from the front!
Locate the Two-Piece Cover
The cover behind your rearview mirror is made of two pieces: a larger lower piece and a smaller upper piece near the headliner.
Slide, Don't Pry
Grasp the larger lower piece and slide it down towards the dashboard. It should move about half an inch. This action releases the upper clips.
Release the Orange Clips
Once slid down, you'll see two orange clips on the upper piece. Gently press them inward while pulling the assembly away from the windshield. It should come off without force.
Set Aside and Save the Clips
Set the factory cover aside. Do not lose the two orange clips! You will need to reuse them to install the new Wefoka housing.
🔌 Step 3: Install the New Front Housing and Wiring

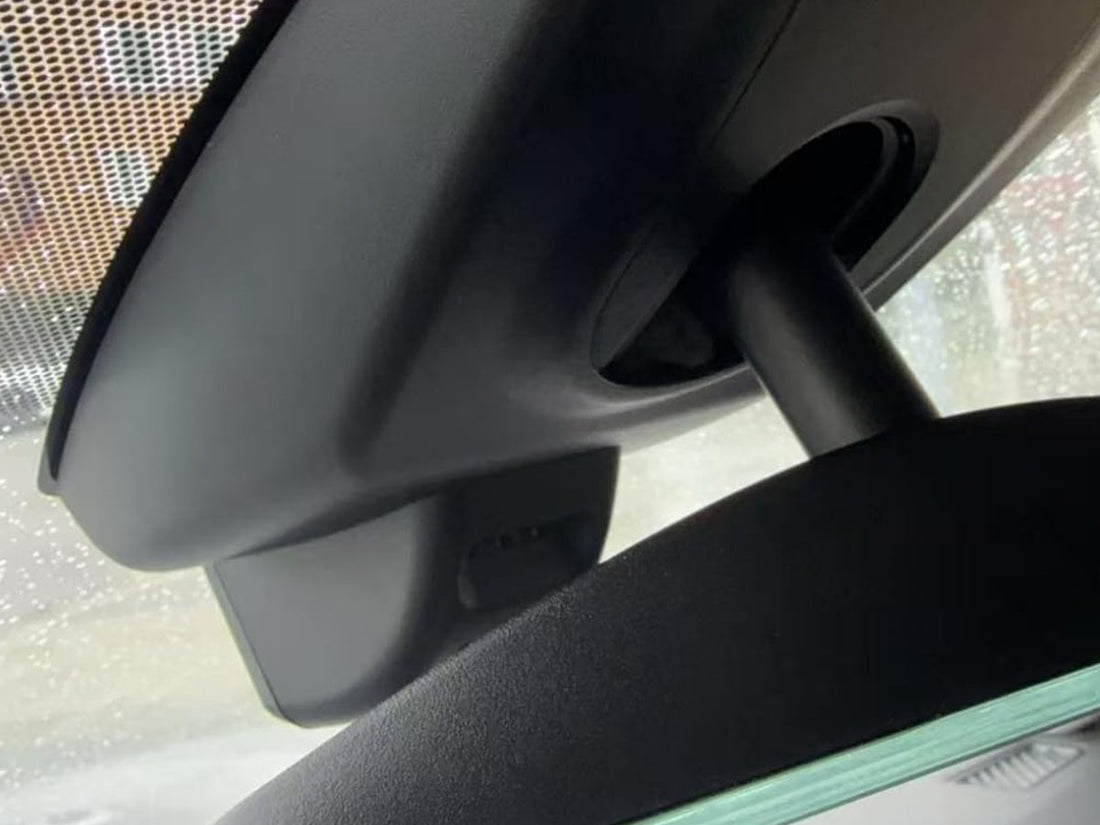

Attach the Wefoka Housing
Take your new Wefoka front camera unit. Clip it into place on the mirror stem. It should click firmly. Now, take those two orange clips you saved and use them to secure the new housing, just as they were on the factory cover.
Connect the Plug-and-Play Harness
Locate the factory wiring connector behind the mirror (the one that powers your auto-dimming mirror, if equipped). Unplug it. Connect the Wefoka power harness in-line. One end goes to the car, the other to the mirror, and the third is for your camera. It's truly plug-and-play. One reviewer raved: "I used the 'plug and play' wiring to connect the camera to the RAV4's factory wiring. This is fantastic, as all the connections are correct and no wires needed to be cut or spliced." [citation:owner review].
Connect and Place the GPS Module
Connect the GPS module to the main harness. Find a good spot for it—usually on the dashboard near the windshield or tucked behind the new housing where it has a clear view of the sky. It is often magnetic, so it may stick to a metal part of the car's frame behind the dash.
Note: Some owners wished the connectors were labeled. If you're unsure, match the shapes of the connectors or refer to the online video.
🚗 Step 4: The Rear Camera Installation (The Hatchback Challenge)
This is where you'll spend the most time. The goal is to run the cable from the front camera, all the way to the rear hatch, with absolutely no wires visible. Patience is key.
Plan Your Route
The standard path is along the headliner on the driver's side. From the front camera, tuck the cable up under the headliner edge, heading towards the rear of the vehicle.
Navigate the A-Pillar
When you reach the driver's side A-pillar, you'll need to get the cable past it. Gently pry the pillar trim away (it's held by clips) and route the cable behind it. Warning: Be mindful of the side curtain airbag. Route the cable behind the airbag module, not in front of it, to ensure safety.
Along the Sills and C-Pillar
Continue tucking the cable under the rubber door seals along the floor (or along the roofline, whichever is easier). You'll eventually make your way to the rear C-pillar and then to the opening for the hatch.
The Rubber Grommet: The Key to a Clean Install
This is the step that separates a good install from a great one. You need to pass the cable through the flexible rubber conduit that connects the car's body to the moving tailgate. This protects the wires and keeps them hidden.
- Carefully pull the rubber grommet away from the body on one end. It should pop out with some effort.
- Use a fish tape or a stiff piece of wire (like a coat hanger) to guide the camera cable through the grommet.
- Apply a little soapy water or silicone lubricant to the cable to help it slide through the tight rubber.
- Once the cable is through, firmly press the grommet back into place, ensuring a tight seal.
"I chose a harder route, using the factory rear rubber grommet so that no wires were visible or could get pinched from the rear hatch."
— Owner with a seamless install
Inside the Hatch and Mounting
Now inside the tailgate, route the cable to your chosen location. The most common spot is at the top center of the rear glass. Clean the glass thoroughly with alcohol, then stick the rear camera mount in place. Connect the cable to the camera.
📲 Step 5: Final Connections and Test
Connect the Rear Cable to the Front
Back at the front of the car, plug the long rear camera cable into the main harness near the front camera. Tuck any excess cable neatly into the headliner.
Power Up and Test
Start your RAV4's engine. The camera should power on automatically. You may hear a beep or see a small LED. Open the Wefoka app on your phone (remember to connect to the camera's WiFi), and check that you are seeing a clear image from both the front and rear cameras.
Reassemble and Admire
Once you've confirmed everything works, snap all the trim panels (A-pillar, etc.) back into place. Tidy up any remaining slack in the cables. Step back and admire your work—your RAV4 now has a dash cam that looks like it came from the factory.
❓ Frequently Asked Questions (Installation)
A: Most owners report 45-60 minutes for the full front and rear installation. The front only takes about 20 minutes.
A: For the cleanest, most professional look, yes. It protects the wire from being pinched. If you're in a hurry, you can run the cable along the outside of the grommet and secure it with zip ties, but you'll see a small loop of wire.
A: This is a common minor complaint. The online installation video is your best friend here. It shows exactly which plug goes where. You can also match them by the shape of the connectors.
A: No. The housing is designed to accommodate all factory features, and the power harness is a "pass-through," so your mirror and other electronics will continue to function normally.
✅ Final Thoughts
Installing the Wefoka dash cam in your RAV4 is a satisfying afternoon project that pays off every time you drive. The key is knowing the secrets beforehand: sliding the cover down to release the orange clips, and patiently routing the rear cable through the factory grommet. With this guide, you're equipped to handle both.
As one owner concluded: "Overall, this dash cam delivers exactly what many RAV4 owners want: a discreet OEM appearance, high-quality front and rear recording, accurate GPS data, and reliable automatic operation." Now, get out there and install yours.
✅ Quick Install Checklist
- ✔ Factory cover: Slide down, release orange clips, save clips.
- ✔ Snap new Wefoka housing in place, reinsert orange clips.
- ✔ Connect plug-and-play power harness (no splicing!).
- ✔ Connect and place GPS module.
- ✔ Run rear cable along headliner, behind A-pillar, to hatch.
- ✔ Patience: Feed rear cable through rubber hatch grommet.
- ✔ Mount rear camera and connect cable.
- ✔ Tidy all wires and reassemble trim.
- ✔ Start engine and check both cameras via the app.
$ slide_cover_down
$ release_orange_clips
$ install_new_housing --reuse_clips true
$ connect_harness --plug_and_play
$ route_cable --to_rear --through_grommet "be patient"
$ echo "Installation complete. RAV4 is now protected."
